Jigs & Fixtures

Precision Engineered Workholding Solutions for High-Accuracy Manufacturing

Machinelab Solutions designs and manufactures custom jigs and fixtures that hold, position, and guide your components with sub-micron accuracy — perfectly integrated with your robotic cells, test handlers, special purpose machines, and production lines.

Why Choose Machinelab Jigs & Fixtures

  • Sub-Micron Precision — Repeatability down to ±0.01 mm for the most demanding applications

  • Cleanroom & ESD Ready — ISO Class 5 compatible, low-outgassing materials, and full ESD protection

  • Rapid Changeover Design — Quick-release mechanisms and modular tooling for high-mix production

  • Full Automation Integration — Designed for robotic loading/unloading, vision guidance, and IIoT connectivity

  • Custom Engineered — Built around your exact part geometry, process requirements, and throughput targets

  • End-to-End Delivery — Concept design → 3D modeling → Prototyping → Validation → Production handover

  • Proven Durability — Long-life materials and robust construction for 24/7 manufacturing environments

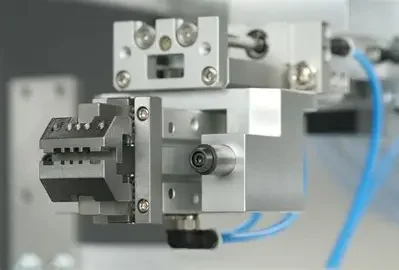

  • Close-up of a precision industrial mechanical component with metal parts and blue wires.

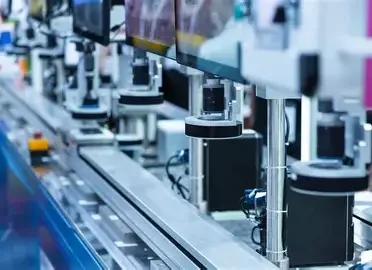

  • A row of automated machines and conveyor belts in a high-tech manufacturing or assembly plant.

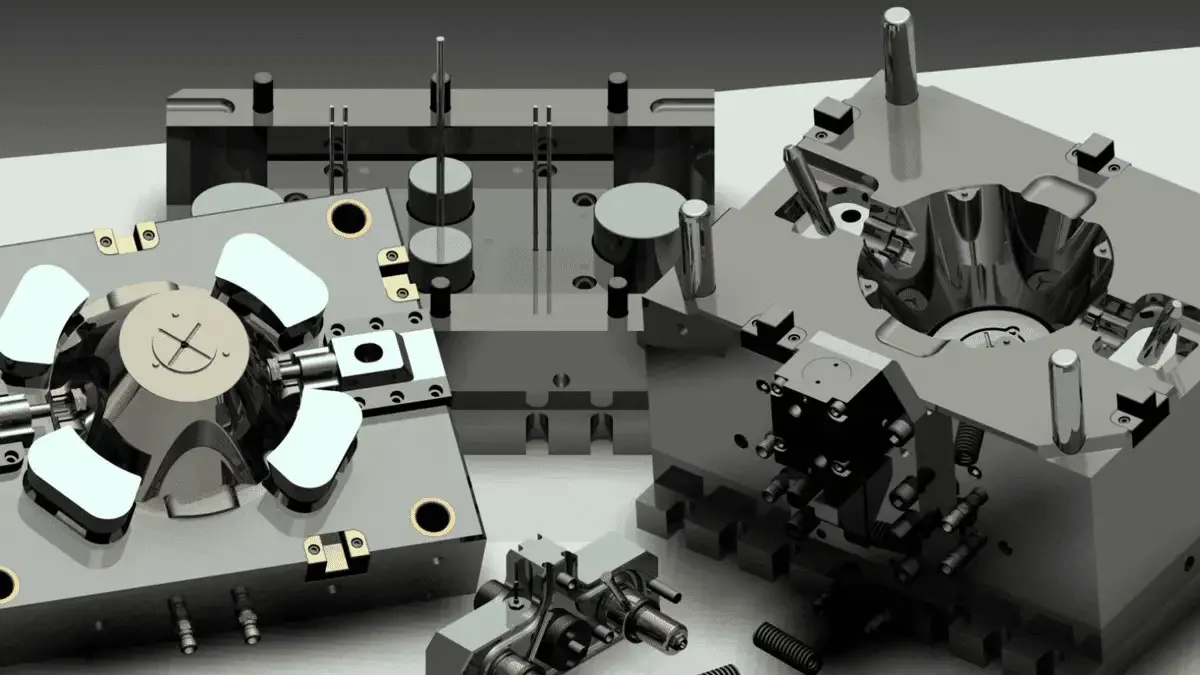

  • Close-up of metal molds used in manufacturing, with various components and mechanisms for shaping metal or plastic.
  • Close-up of metal mechanical parts, screws, and bolts attached to a flat metal surface.

Our Jigs & Fixtures Capabilities

Custom Precision Jigs

  • Assembly jigs for micro-components, PCBs, and sensors

  • Alignment jigs for optical and laser-based processes

  • Soldering and dispensing jigs with precise thermal management

Custom Fixtures

  • Machining and deburring fixtures

  • Inspection and metrology fixtures with integrated vision mounting

  • Test fixtures for functional and in-circuit testing

Robotic & Automation-Ready Solutions

  • End-of-arm tooling (EOAT) compatible fixtures

  • Docking stations for AMR/AGV material transfer

  • Multi-part fixtures for high-speed robotic pick-and-place

Advanced Features

  • Digital twin simulation for virtual validation

  • Modular quick-change systems (SMED)

  • Embedded sensors for force monitoring and predictive maintenance

  • Lightweight carbon-fiber and aerospace-grade aluminum construction options

All designs are developed using the latest CAD/CAE tools and fully documented for IQ/OQ/PQ validation.

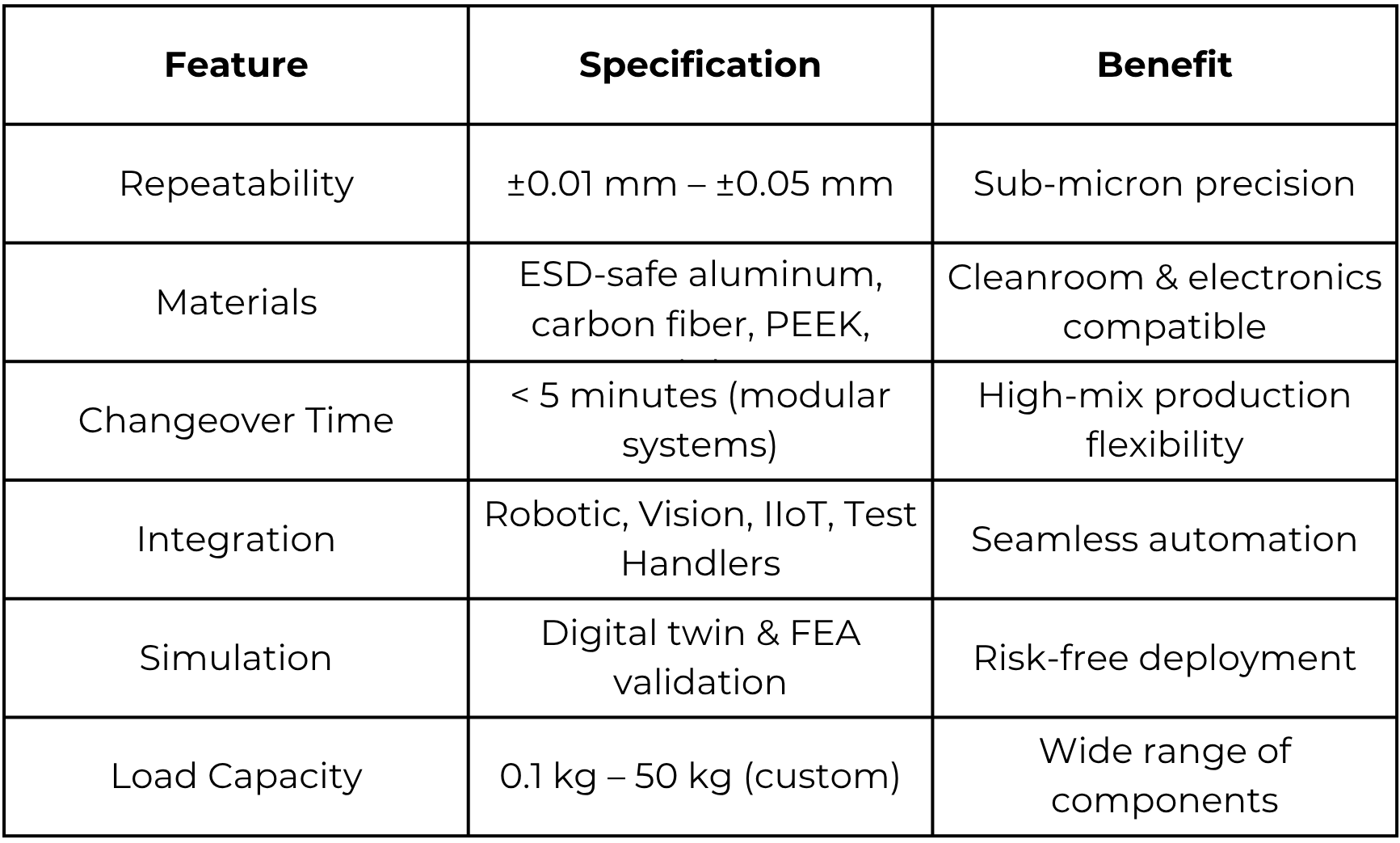

Table comparing features, specifications, and benefits of a product, including repeatability, materials, changeover time, integration, simulation, and load capacity.

Why Global Manufacturers Partner with Machinelab Solutions

  • Independent Custom Expertise — We design the optimal jig or fixture without being tied to any single automation brand

  • One-Stop Precision Partner — Jigs & fixtures integrate perfectly with our robotics, test handlers, custom machines, and IIoT systems

  • Collaborative Design Process — Regular design reviews and rapid prototyping for fast time-to-market

  • Long-Term Support — Spare parts, maintenance programs, and continuous improvement support included

Need precision workholding that actually improves your process?

Our engineering team is ready to review your parts and process — and deliver a complete custom jig & fixture solution with digital twin validation and ROI analysis.

Request a Jig & Fixture Consultation | Download Our Precision Workholding Guide | Schedule a Design Review Meeting
